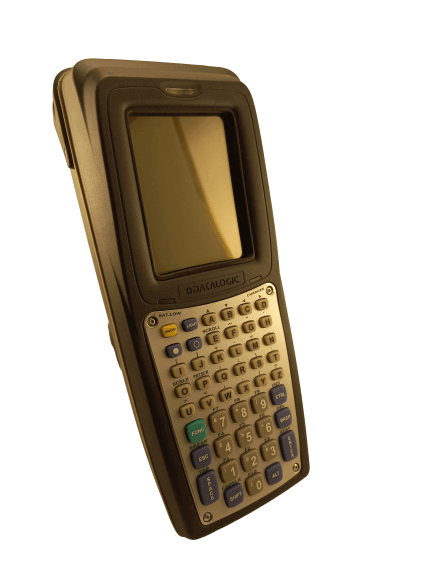

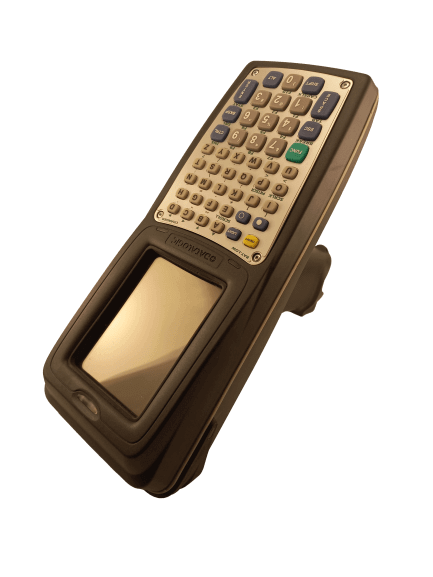

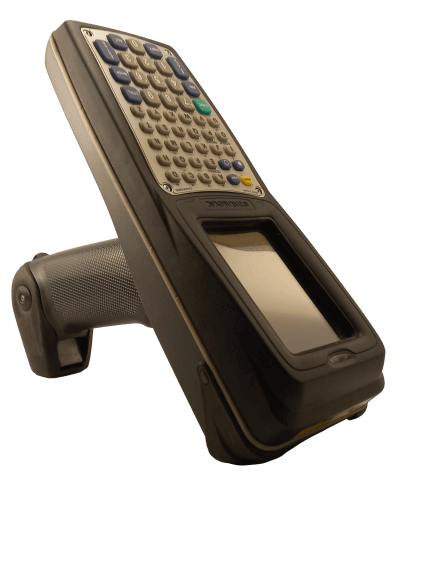

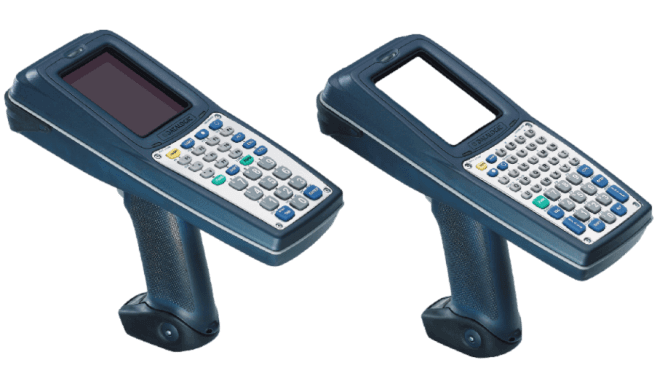

DATALOGIC Viper-NET™ DL9600 WiFi Win CE

TECHNICAL DATA
Viper-NET™ XXX-1XX  : HP
Optical Features  :  Maximum resolution 0.13 mm / 5 mils 0.19 mm / 7.5 mils   Skew angle ± 55 ° ± 60°  Pitch angle ± 65° ± 65°    Scan rate 35 ± 5 scan/sec 33.8 – 45.4 scan/sec
Light source  : laser scanner VLD, wavelength 630~680 nm
Safety class :  Class II EN 60825-1/CDHR
Electrical Features
Power :  DC supply 14 V ± 5%
Battery pack :  2 cell Li-Ion 2000 mAh@ 7.2 V (nominal)
Internal backup :  battery Rechargeable Li-Ion 30mAh
Hardware Features
FLASH 32 MB
RAM 64 MB
Microprocessor Intel XScale PXA 255 400 MHz
Buzzer 2 piezoelectric buzzers
Display  : 64K Color TFT LCD with 320 x 240 pixel resolution,   with LED backlight and touch screen
Keyboard : 48 silicone-covered rubber keys
Mechanical Features
Dimensions (LxWxH) 23.5 x 10.5 x 18 cm / 9.25 x 4.13 x 7.08 in
Weight 808 g / 28.5 oz (with Li-Ion)   835 g / 29.5 oz (with Li-Ion and PC card)
